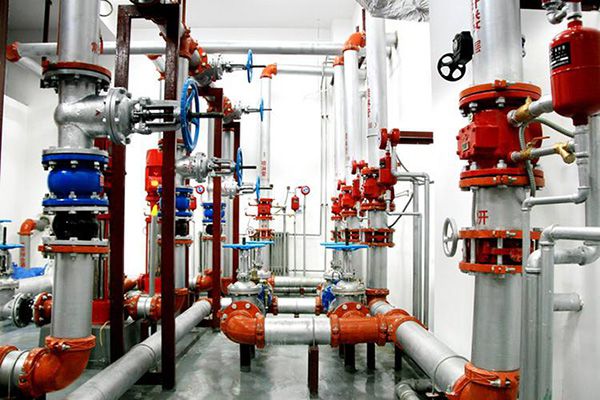

Grooved Pipe Fittings for Fire Fighting System

What is the role of pipeline couplings in the fire protection industry?

  • Couplings: a small part with a crucial role in fire protection

  • Grooved couplings play a critical role in the fire protection industry, as most sprinkler pipe connections require rigid joints. However, in certain instances, such as seismic design requirements, greater flexibility is needed to prevent damage during earthquakes. Flexible couplings are the solution in such cases.

  • Qualified fire protection system planning is necessary to ensure the safety of fire protection systems and must be conducted in accordance with local regulations. Determining the Seismic Design Category (SDC) of a building is essential to determine whether special equipment is necessary for seismic design.

HT Casting offers a wide range of pipe fittings to meet your needs

  • Both rigid grooved couplings and fittings are available in stock and online.

  • For custom-designed flexible couplings, please contact us for special orders.

  • Grooved Pipe Fittings for Fire Fighting System
  • Grooved Pipe Fittings for Fire Fighting System
Recommended Pipe Couplings & Fittings
    1. Grooved Rigid Coupling View More
    2. Grooved Rigid Coupling Grooved rigid coupling is a pipe fitting used to connect two pipes or equipment in various applications. It offers easy and fast installation without the need for any special tools or skills.
      Available sizes
      Available sizes: 1~12 inch | DN25~DN300
      Working pressure
      Working pressure: 300PSI/2.07MPa
      Certificate
      Certificate: FM/UL/CE certified
    1. Grooved Concentric Reducer View More
    2. Grooved Concentric Reducer Grooved concentric reducers are cone-shaped pipe fittings with grooved connections that reduce the size of a pipeline in a symmetrical and concentric manner, while keeping the centerlines of the two pipes aligned.
      Available sizes
      Available sizes: 1 1/4×1 inch~12×10 inch |DN32×25~DN300×250
      Working pressure
      Working pressure: 300PSI/2.07MPa
      Certificate
      Certificate: FM/UL/CE certified
    1. Mechanical Tee Grooved Outlet View More
    2. Mechanical Tee Grooved Outlet Mechanical tee grooved outlet consist of upper and lower plates, a gasket, and bolts/nuts, providing a simple and fast method for branch connection.
      Available sizes
      Available sizes: 2×1 inch~10×4 inch |DN50×25~DN250×65
      Working pressure
      Working pressure: 300PSI/2.07MPa
      Certificate
      Certificate: FM/UL/CE certified
    1. Grooved Equal Tee View More
    2. Grooved Equal Tee The grooved ends are connected to the pipe using couplings for fluid distribution to provide the change in direction, and adapt sizes or components.
      Available sizes
      Available sizes: 1 inch~12 inch |DN25~DN300
      Working pressure
      Working pressure: 300PSI/2.07MPa
      Certificate
      Certificate: FM/UL/CE certified
    1. Grooved Equal Cross View More
    2. Grooved Equal Cross Grooved equal cross features convenient and quick connections utilizing a coupling. Simply insert the pipe into the coupling and tighten the bolts.
      Available sizes
      Available sizes: 2 inch~8 inch |DN50~DN200
      Working pressure
      Working pressure: 300PSI/2.07MPa
      Certificate
      Certificate: FM/UL/CE certified
    1. Grooved 90° Elbow View More
    2. Grooved 90° Elbow Grooved 90°elbow is an elbow fitting that is used for connecting two pipes with the same size to make the pipeline turn 90 degrees. It provides a change in flow direction and facilitates the adaptation of sizes or components.
      Available sizes
      Available sizes: 1 1/4×1 inch~8×6 inch |DN32×25~DN200×150
      Working pressure
      Working pressure: 300PSI/2.07MPa
      Certificate
      Certificate: FM / UL /CE certified
    1. Grooved Adaptor Flange View More
    2. Grooved Adaptor Flange A grooved adaptor flange is an adjustable connecting flange that functions similarly to an expansion joint. It consists of two flange discs that are individually fixed, with a flange gasket placed between them.
      Available sizes
      Available sizes: 1 inch~12 inch |DN25~DN300
      Working pressure
      Working pressure: 300PSI/2.07MPa
      Certificate
      Certificate: FM / UL /CE certified
    1. Grooved End Cap View More
    2. Grooved End Cap A grooved end cap is specifically designed to be fitted onto the end of a pipe using a grooved connection. It serves as an isolation or cutoff device to block the pipeline and form liquid or gas tight seal.
      Available sizes
      Available sizes: 1 inch~12 inch |DN25~DN600
      Working pressure
      Working pressure: 300PSI/2.07MPa
      Certificate
      Certificate: FM / UL /CE certified
