Grooved Reducing Tee
  • Grooved Reducing Tee
  • Grooved Reducing Tee
    • Request a Quote

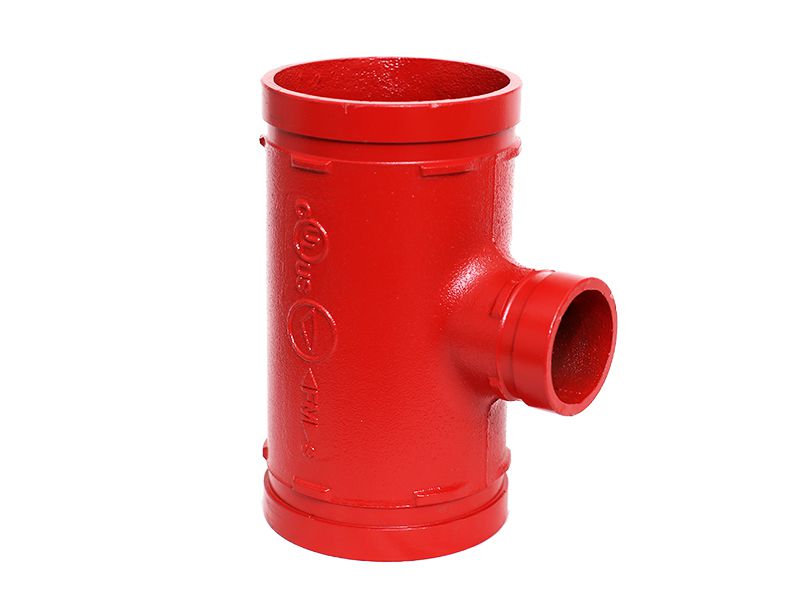

    Grooved reducing tee, named for its T-shaped configuration, has a branch outlet with a different size from the main outlet. Each end of the tee has a groove, allowing it to be quickly and easily connected to the pipeline using couplings or fittings.

    Recommended Applications

    • Grooved reducing tee is suitable for piping systems in industries such as petroleum, chemical, oil, natural gas, and urban construction, like heating pipeline systems, drainage and water supply systems, and more.

    • Connects pipe, provides changes in direction, and adapts to sizes or components.

    Certification
    Certification
    Certification
    Certification
    Key Specifications
    • Available sizes
      Available sizes: 2×1 inch~10×4 inch |DN50×25~DN250×65
    • Working pressure
      Working pressure: 300PSI/2.07MPa
    • Certificate
      Certificate: FM/UL/CE certified
    • Coating
      Coating: epoxy/galvanized
    Specifications

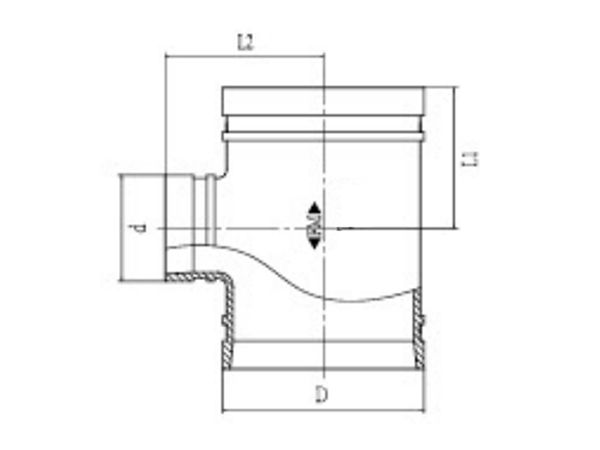

    Nominal size mm/inPipe OD.Dimensions
    mm/inL1mm/inL2mm/in
    50x25 / 2x160.3 x 33.7 / 2.375x1.31570 / 2.7670 / 2.76
    50x32 / 2x1 1/460.3 x 42.4 / 2.375x1.66070 / 2.7670 / 2.76
    50x40 / 2x1 1/260.3 x 48.3 / 2.375 x 1.90070 / 2.7670 / 2.76
    65x32 / 2 1/2x1 1/473.0 x 42.4 / 2.875x1.66076 / 2.9976 / 2.99
    65x40 / 2 1/2x1 1/273.0x48.3 / 2.875x1.90076 / 2.9976 / 2.99
    65x50 / 2 1/2 x 273.0 x 60.3 / 2.875x2.37576 / 2.9976 / 2.99
    65x32 / 2 1/2X1 1/476.1 x42.4 / 3.000x1.66076 / 2.9976 / 2.99
    65x40 / 2 1/2X1 1/276.1x48.3 / 3.000x1.90076 / 2.9976 / 2.99
    65x50 / 2 1/2X276.1x60.3 / 3.000x2.37595 / 3.7495 / 3.74
    80x50 / 3x288.9 x 60.3 / 3.500x2.375108 / 4.25108 / 4.25
    80x65 / 3x2 1/288.9 x 76.1 / 3 500x3000108 / 4.25108 / 4.25
    100x65 / 4x2 1/2108.0x76.1 / 4.250 x 3.000127 / 5127 / 5
    100x80 / 4x3108.0 x 88.9 / 4.250 x 3.500127 / 5127 / 5
    100x50 / 4x2114.3x60.3 / 4.500x2.375127 / 5127 / 5
    100x65 / 4x2 1/2114.3x76.1 / 4.500 x 3.000127 / 5127 / 5
    100x80 / 4x3114.3x88.9 / 4.500x3.500127 / 5127 / 5
    125x65 / 5x2 1/2133.0 x 76.1 / 5.250 x 3.000122 / 4.8122 / 4.8
    125x 100 / 5x4133.0x108.0 / 5 250 x 4 250122 / 4.8122 / 4.8
    125x50 / 5x2139.7x60.3 / 5.500 x 2.375110 / 4.33110 / 4.33
    125x65 / 5x2 1/2139.7 x 76.1 / 5.500 x 3.000110 / 4.33110 / 4.33
    125x80 / 5x3139.7 x 88.9 / 5.500 x 3.500110 / 4.33110 / 4.33
    125x100 / 5x4139.7x114.3 / 5.500 x 4.500110 / 4.33110 / 4.33
    150x65 / 6x2 1/2159.0x76.1 / 6.250 x 3.000122 / 4.8122 / 4.8
    150x80 / 6x3159.0x88.9 / 6.250 x 3.500122 / 4.8122 / 4.8
    150x100 / 6x4159.0x108.0 / 6.250 x 4.250122 / 4.8122 / 4.8
    150x 100 / 6x4159.0 x 114.3 / 6.250 x 4.500122 / 4.8122 / 4.8
    150x50 / 6x2165.1 x 60.3 / 6.500x2.375165 / 6.5165 / 6.5
    150x65 / 6x2 1/2165.1 x 76.1 / 6.500 x 3.000165 / 6.5165 / 6.5
    150x80 / 6x3165.1 x88.9 / 6.500x2.376165 / 6.5165 / 6.5
    150x50 / 6x2168.3 x 60.3 / 6.625 x 2.376140 / 5.51140 / 5.51
    150x65 / 6x2 1/2168.3x73 / 6.625 x 2.874140.00140.00
    150x65 / 6x2 1/2168.3 x 76.1 / 6.625x3.000140 / 5.51140 / 5.51
    150x80 / 6x3168.3 x 88.9 / 6.625 x 3.500140 / 5.51140 / 5.51
    150x100 / 6x4168.3x114.3 / 6.625 x 4.500140 / 5.51140 / 5.51
    200 x 65 / 8 x 2 1/2219.1 x 76.1 / 8.625 x 3.000197 / 7.76197 / 7.76
    200x80 / 8x3219.1 x88.9 / 8.625 x 3.500197 / 7.76197 / 7.76
    200x100 / 8x4219.1 x 114.3 / 8.625 x 4.500197 / 7.76197 / 7.76
    200x125 / 8x52191x139.7 / 8.625 x 5.500197 / 7.76197 / 7.76
    200x150 / 8x6219.1x166.1 / 8.62S x 6.500197 / 7.76197 / 7.76
    200x 150 / 8x6219.1x168.3 / 8.625 x 6.625197 / 7.76197 / 7.76
    250x100 / 10x4273.0x114.3 / 10.750 x 4.500229 / 9.02229 / 9.02
    250x125 / 10x5273.0 x 139.7 / 10.750x5.500229 / 9.02229 / 9.02
    250x 150 / 10x6273.0 x 165.1 / 10.750x6.500229 / 9.02229 / 9.02
