Grooved Lateral Tee
  • Grooved Lateral Tee
  • Grooved Lateral Tee
    • Request a Quote

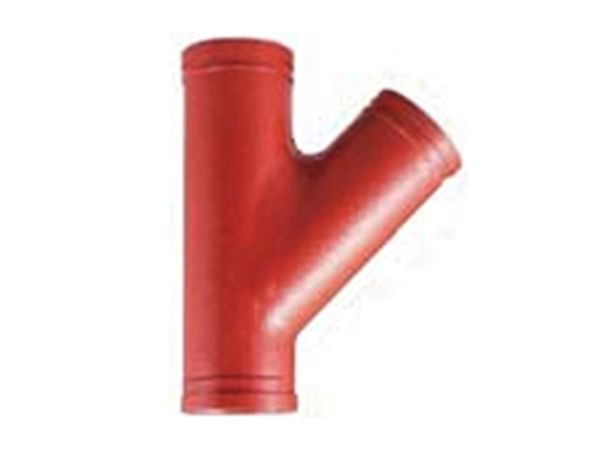

    Grooved lateral tee is a type of tee fitting with a specified angle between the branch pipe and the main pipe, allowing for a change in the direction of the main pipe.

    Recommended Applications

    • Grooved lateral tee is suitable for piping systems in industries such as firefighting, marine, oil and gas transportation, petrochemical industry, industrial piping, water supply and drainage engineering, and more.

    • Connects pipe, provides the change in direction, and accommodates to sizes or components.

    Certification
    Certification
    Certification
    Certification
    Key Specifications
    • Available sizes
      Available sizes: 1 inch~12 inch |DN25~DN300
    • Working pressure
      Working pressure: 300PSI/2.07MPa
    • Certificate
      Certificate: FM/UL/CE certified
    • Coating
      Coating: epoxy /galvanized
    • Color
      Color: red/orange/white, etc.
    Specifications

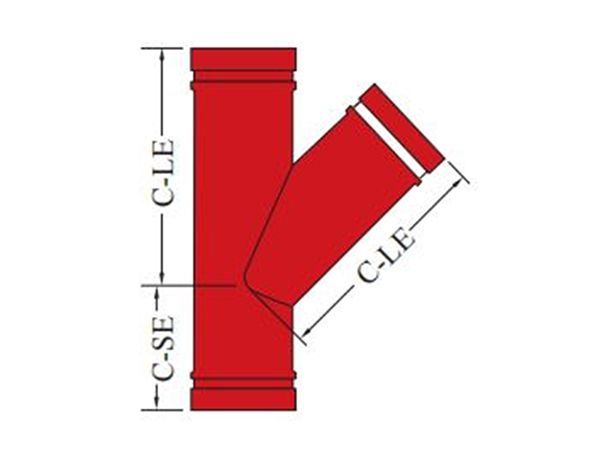

    Nominal SizePipe O.D.C-LEC-SE
    mm/inmm/inmm/inmm/in
    50 / 260.3 / 2.375178 7.0070 / 2.75
    65 / 2 1/273 / 2.875197 7.7576 / 3.00
    65 / 2 1/276.1 / 3197 7.7576 / 3.00
    80 / 388.9 / 3.5216 8.5083 / 3.25
    100 / 4114.3 / 4.5267 10.5095 / 3.75
    125 / 5133 / 5.25318 12.50102 / 4.00
    125 / 5139.7 / 5.5318 12.50102 / 4.00
    150 / 6165.1 / 6.5356 14.00114 / 4.50
    200 / 8219.1 / 8.625457 18.00152 / 6.00
    250 / 10273 / 10.75521 20.50165 / 6.50
    300 / 12323.9 / 12.75584 23.00178 / 7.00
