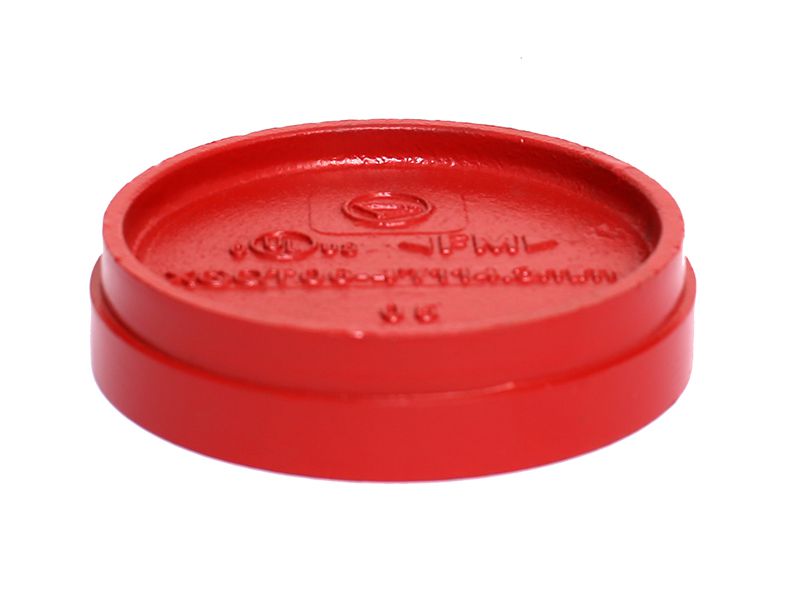

    A grooved end cap is specifically designed to be fitted onto the end of a pipe using a grooved connection. It serves as an isolation or cutoff device to block the pipeline and form liquid or gas tight seal.

    Certification
    Certification
    Certification
    Certification
    Key Specifications
    • Available sizes
      Available sizes: 1 inch~12 inch |DN25~DN600
    • Working pressure
      Working pressure: 300PSI/2.07MPa
    • Certificate
      Certificate: FM / UL /CE certified
    • Coating
      Coating: epoxy / galvanized
    • Color
      Color: red/orange/white etc.
    Specifications

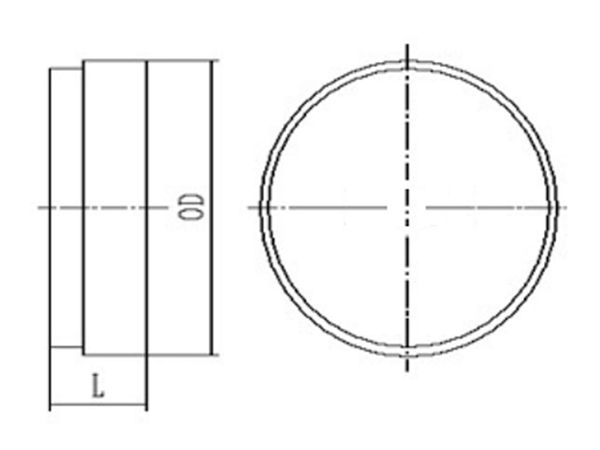

    Nominal SizePipe ODDimensions
    mm/inmm/inL mm/in
    25 / 133.7 / 1.32725 / 0.98
    32 / 1 1/442.4 / 1.66925 / 0.98
    40 / 1 1/248.3 / 1.925 / 0.98
    50 / 260.3 / 2.37525 / 0.98
    65 / 2 1/273 / 2.87525 / 0.98
    65 / 2 1/276.1 / 325 / 0.98
    80 / 388.9 / 3.525 / 0.98
    100 / 4108 / 4.2525 / 0.98
    100 / 4114.3 / 4.526 / 1.02
    125 / 5133 / 5.2525 / 0.98
    125 / 5139.7 / 5.526 / 1.02
    125 / 5141.3 / 5.56326 / 1.02
    150 / 6159 / 6.2526 / 1.02
    150 / 6165.1 / 6.526 / 1.02
    150 / 6168.3 / 6.62526 / 1.02
    200 / 8219.1 / 8.62530 / 1.18
    250 / 10273 / 10.7532 / 1.26
