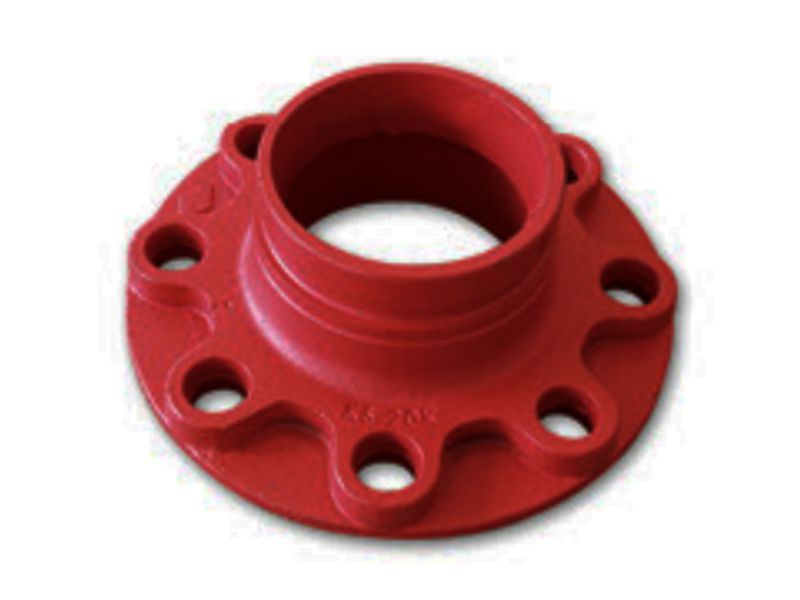

A grooved KS adaptor flange is a flange that is welded with a circular pipe, enhancing its stiffness and load-bearing capacity. It allows for changes in direction and adapts to different sizes or components.

Recommended Applications

The grooved KS adaptor flange is well-suited for various industries, including boiler pressure vessels, petroleum, chemical, shipbuilding, pharmaceutical, and others. It is commonly used in oil and gas transportation pipeline systems, chemical pipeline systems, and similar applications.

Key Specifications

Available sizes: 1 inch~12 inch |DN25~DN300
Working pressure: 300PSI/2.07MPa
Certificate: FM / UL /CE certified
Coating: epoxy / galvanized
Color: red/orange/white etc.

Specifications

Nominal Size	Pipe OD.	Dimensions mm/in				Bolt Size
mm/in	mm/in	L mm/in	X mm/in	Y mm/in	Z mm/in	No.-Size mm
50 / 2	60.3 / 2.375	64 / 2.52	165 / 6.02	125 / 4.92	19 / 0.75	4-Φ16
65 / 2 1/2	73 / 2.875	60 / 2.36	185 / 6.89	145 / 5.71	16 / 0.63	4-Φ 16
65 / 2 1/2	76.1 / 3	50 / 1.97	185 / 6.89	145 / 5.71	13 / 0.51	4-Φ 16
80 / 3	88.9 / 3.5	60 / 2.36	200 / 7.48	160 / 6.3	13 / 0.51	8-Φ16
100 / 4	108 / 4.25	70 / 2.76	220 / 8.27	180 / 7.09	18 / 0.71	8-Φ16
100 / 4	114.3 / 4.5	70 / 2.76	220 / 8.58	180 / 7.09	18 / 0.71	8-Φ16
125 / 5	133 / 5.25	70 / 2.76	250 / 8.58	210 / 7.09	18 / 0.71	8-Φ16
125 / 5	139.7 / 5.5	70 / 2.76	250 / 8.58	210 / 7.09	18 / 0.71	8-Φ16
150 / 6	159 / 6.25	70 / 2.76	285 / 11.1	240 / 9.44	18 / 0.71	8-Φ20
150 / 6	165.1 / 6.5	70 / 2.76	285 / 11.1	240 / 9.44	18 / 0.71	8-Φ20
150 / 6	168.3 / 6.625	70 / 2.76	285 / 11.1	240 / 9.44	19 / 0.75	8-Φ20
200 / 8	219.1 / 8.625	80 / 3.15	340 / 13.11	295 / 11.61	19 / 0.75	12-Φ20
250 / 10	273 / 10.75	80 / 3.15	405 / 15.63	355 / 13.98	18 / 0.71	12*M24
