Grooved Long Radius Equal Tee
  • Grooved Long Radius Equal Tee
  • Grooved Long Radius Equal Tee
    • Request a Quote

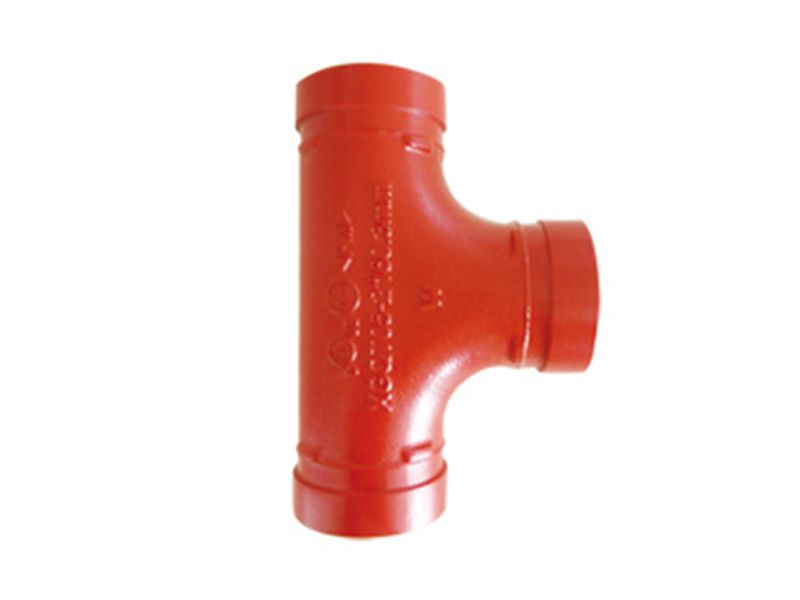

    Grooved long radius equal tee is a type of tee fitting where the main and branch pipe have the same size. The neck of the long radius equal tee is longer compared to a standard equal tee. The branch pipe is perpendicular to the main pipe and the grooved end is connected to the pipe using couplings to provide changes in flow direction.

    Recommended Applications

    • Grooved long radius equal tee is suitable for various industrial pipeline systems, such as chemical piping systems, deep-sea oil well piping systems, and more.

    • Connects pipe, provides changes in direction, and adapts to sizes or components

    Certification
    Certification
    Certification
    Certification
    Key Specifications
    • Available sizes
      Available sizes: 1 inch~12 inch |DN25~DN300
    • Working pressure
      Working pressure: 300PSI/2.07MPa
    • Certificate
      Certificate: FM/UL/CE certified
    • Coating
      Coating: epoxy /galvanized
    • Color
      Color: red/orange/white, etc.

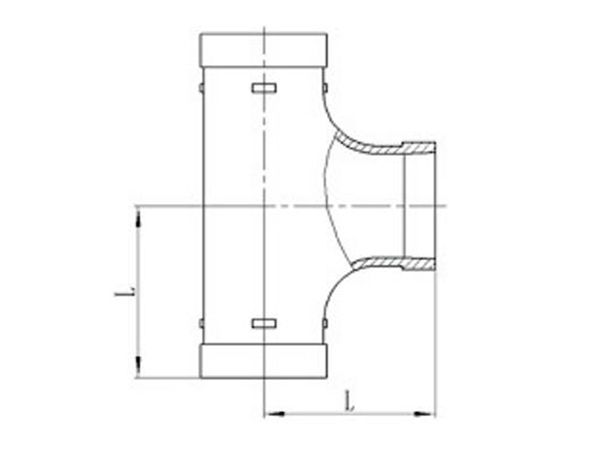

    Specifications
    Nominal SizePipe O.D.Dimensions
    mm/inmm/inL mm/in
    25 / 133.7 / 1.32770 / 2.76
    32 / 1 1/442.4 / 1.66970 / 2.76
    40 / 1 1/248.3 / 1.970 / 2.76
    50 / 260.3 / 2.37582 / 3.23
    65 / 2 1/273 / 2.87595 / 3.74
    65 / 2 1/276 / 395 / 3.74
    80 / 388.9 / 3.5108 / 4.25
    100 / 4108 / 4.25127 / 5
    100 / 4114.3 / 4.5127 / 5
    125 / 5133 / 5.25140 / 5.51
    125 / 5139.7 / 5.5140 / 5.51
    125 / 5141.3 / 5.563140 / 5.51
    150 / 6159 / 6.25165 / 6.5
    150 / 6165.1 / 6.5165 / 6.5
    150 / 6168.3 / 6.625165 / 6.5
    200 / 8219.1 / 8.625197 / 7.76
    250 / 10273 / 10.75229 / 9.02
    300 / 12323.9 / 12.75254 / 10
