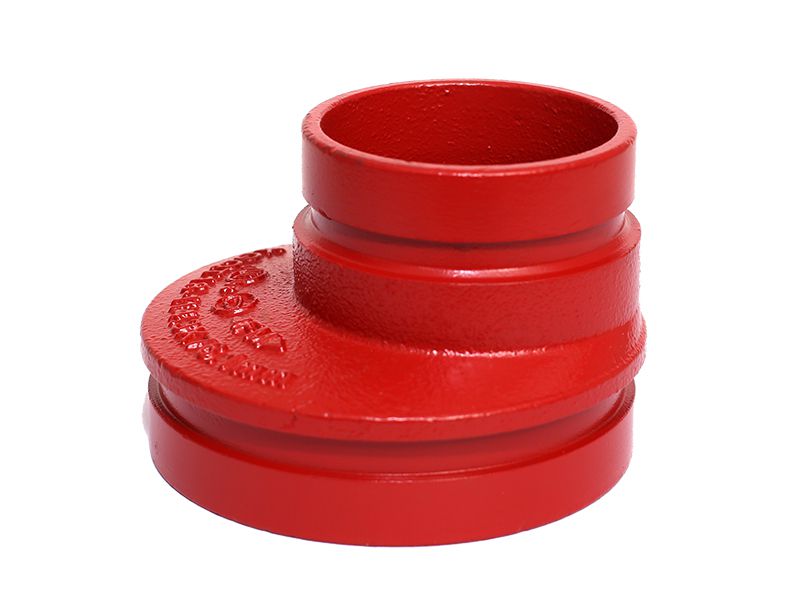

    Grooved eccentric reducers are cone-shaped pipe fittings with grooves for connection, which reduce the size of the pipeline in an eccentric manner. This product achieves mechanical coupling by using a set of grooves at the ends of the pipes and fittings. Typically, a specialized tool is used to cut a groove at the pipe end, and then the joint is clamped onto the groove using bolts or a similar mechanism.

    Features

    • Grooved eccentric reducers are made of ductile iron, stainless steel, or carbon steel, offering strong wear resistance and corrosion resistance.

    • Available in various sizes and pressure ratings, suitable for different applications.

    • Enables the connection of two pipes with different diameters.

    • Connects pipes to provide changes in direction and adapt sizes or components.

    Recommended Applications

    Grooved eccentric reducers are commonly used in industrial and commercial piping systems, such as gas pipelines, water supply pipelines, etc., where the size of the pipeline needs to be reduced to accommodate changes in flow or pressure.

    Certification
    Certification
    Certification
    Certification
    Key Specifications
    • Available sizes
      Available sizes: 1 1/4×1 inch~12×4 inch |DN32×25~DN300×100
    • Working pressure
      Working pressure: 300PSI/2.07MPa
    • Certificate
      Certificate: FM/UL/CE certified
    • Coating
      Coating: epoxy/galvanized
    • Color
      Color: red/orange/white
    • Material
      Material: ductile iron
    Specifications

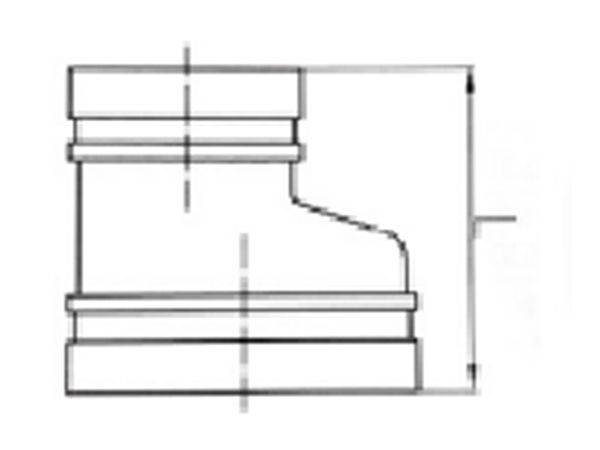

    Nominal SizePipe ODDimensions
    mm/inmm/inL mm/in
    32x25 / 1 1/4x142.4x33.7 / 1.660x1.31564 / 2.51
    40x25 / 11/2x148.3x33.7 / 1.900x1.31564 / 2.51
    40x32 / 1 1/2×1 1/448.3x42.4 / 1.900x1.66064 / 2.51
    50x25 / 2x160.3 x 33.7 / 2.375x1.31564 / 2.51
    50x32 / 2x1 1/460.3x42.4 / 2.375x1.66064 / 2.51
    50x40 / 2x1 1/2603x48.3 / 2.375x1.90064 / 2.51
    65x25 / 2 1/2x173.0 x 33.7 / 2.875x1.31564 / 2.51
    65x32 / 2 1/2x1 1/473.0x42.4 / 2.875x1.66064 / 2.51
    65x40 / 2 1/2x1 1/273.0x48.3 / 2.875x1.90064 / 2.51
    65x50 / 2 1/2x273.0 x 60.3 / 2.875x2.37564 / 2.51
    65x32 / 2 1/2x1 1/476.1 x 42.4 / 3.000x1.66064 / 2.51
    65x40 / 2 1/2x1 1/276.1x48.3 / 3.000x1.90064 / 2.51
    65x50 / 2 1/2x276.1x60.3 / 3.000 x 2.37564 / 2.51
    80x32 / 3x1 1/488.9x42.4 / 3.500x1.66055 / 2.17
    80x40 / 3x1 1/288.9 x 48.3 / 3.500x1.90055 / 2.17
    80x50 / 3x288.9 x 60.3 / 3.500x2.37555 / 2.17
    80x65 / 3x2 1/288.9x76.1 / 3.500 x 3.00055 / 2.17
    100x65 / 4x2 1/2108.0 x 76.1 / 4.250 x 3.00076 / 2.99
    100x80 / 4x3108.0x88.9 / 4.250 x 3.50076 / 2.99
    100x32 / 4x1 1/4114.3x42.4 / 4.500x1.66060 / 2.36
    100x40 / 4x1 1/2114.3x48.3 / 4.500x1.90060 / 2.36
    100x50 / 4x2114.3x60.3 / 4.500x2.37560 / 2.36
    100x65 / 4x2 1/2114.3x76.1 / 4.500 x 3.00060 / 2.36
    100x80 / 4x3114.3x88.9 / 4.500 x 3.50060 / 2.36
    125x50 / 5x2139.7x60.3 / 5.500x2.37565 / 2.56
    125x65 / 5x2 1/2139.7x76.1 / 5.500 x 3.00065 / 2.56
    125x80 / 5x3139.7x88.9 / 5.500 x 3.50065 / 2.56
    125x100 / 5x4139.7x114.3 / 5.500 x 4.50065 / 2.56
    150x50 / 6x2159.0x60.3 / 6.250x2.37570 / 2.76
    150x65 / 6x2 1/2159.0x76.1 / 6.250 x 3.00070 / 2.76
    150x80 / 6x3159.0x88.9 / 6.250 x 3.50070 / 2.76
    150x100 / 6x4159.0x108.0 / 6.250 x 4.25070 / 2.76
    150x100 / 6x4159.0x114.3 / 6.250x4.50070 / 2.76
    150x125 / 6x5159.0x133.0 / 6.250x5.25070 / 2.76
    150x125 / 6x5159 0x139 7 / 6.250 x 5.50070 / 2.76
    150x50 / 6x2165.1 x60.3 / 6.500 x 2.375102 / 4.01
    150x65 / 6x2 1/2165.1x76.1 / 6.500 x 3.000102 / 4.01
    150x80 / 6x3165.1x88.9 / 6.500 x 3.500102 / 4.01
    150x100 / 6x4165.1x114.3 / 6.500x4.500102 / 4.01
    150x125 / 6x5165.1x139.7 / 6.500x5.500102 / 4.01
    150x50 / 6x2168.3 x 60.3 / 6.625x2.37570 / 2.76
    150x65 / 6x2 1/2168.3x76.1 / 6.625 x 3.00070 / 2.76
    150x80 / 6x3168.3 x 88.9 / 6.625x3.50070 / 2.76
    150x100 / 6x4168.3x114.3 / 6.625x4.50070 / 2.76
    150x125 / 6x5168.3x139.7 / 6.625 x 5.50070 / 2.76
    200 x 50 / 8x2219.1x60.3 / 8.625x2.37585 / 3.35
    200x65 / 8x2 1/2219.1x76.1 / 8 625x3.00085 / 3.35
    200 x 80 / 8x3219.1x88.9 / 8.625x3.50085 / 3.35
    200x100 / 8x4219.1 x 108.0 / 8.625x4.25085 / 3.35
    200x100 / 8x4219.1 x 114.3 / 8.625x4.50085 / 3.35
    200x125 / 8x5219.1 x 139.7 / 8.625 x 5.50085 / 3.35
    200x150 / 8x6219.1 x 159.0 / 8.625x6.25085 / 3.35
    200x150 / 8x6219.1 x 165.1 / 8.625x6.50085 / 3.35
    200x150 / 8x6219.1 x 168.3 / 8.625x6.62585 / 3.35
    Which method allows for the quick installation of a piping system?
    Grooved pipe fittings make fast installation possible, offering ease of use and low maintenance costs. If you are looking for a better way to connect pipes, grooved fitting is an ideal method.
    Why is grooved pipe joining becoming increasingly popular in piping construction?
    Grooved pipe joining provides high stability and seismic resistance to piping systems, as well as reduces piping construction time and mitigates the risks that often occur during installation. Therefore, grooved pipe joining has become a highly favored method in pipeline construction projects.
