Grooved 22.5° Elbow
  • Grooved 22.5° Elbow
  • Grooved 22.5° Elbow
    • Request a Quote

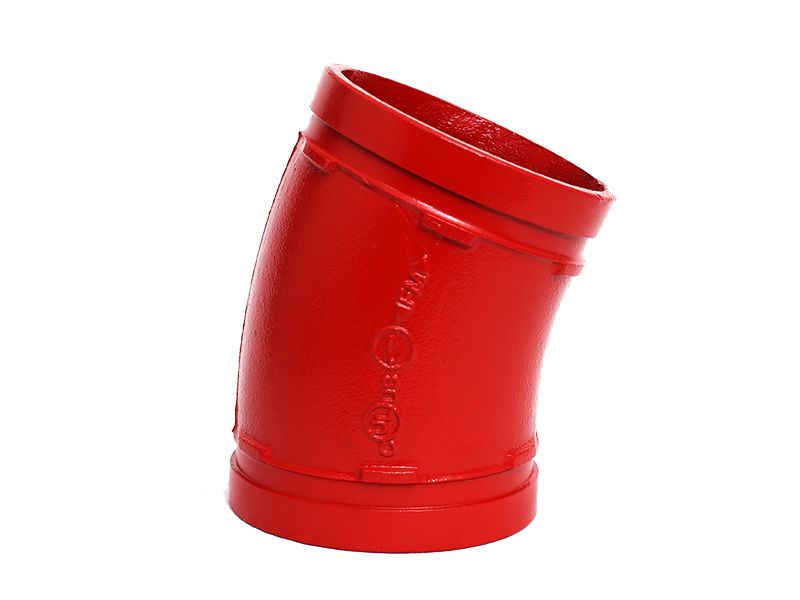

    Grooved 22.5°elbow is an elbow fitting that is used for connecting two pipes with the same size to make the pipeline turn 22.5 degrees. It provides a change in flow direction and facilitates the adaptation of sizes or components.

    Recommended Applications

    Grooved 22.5° elbow is suitable for indoor heating systems, sewage treatment systems, oil and gas transmission pipeline systems, etc.

    Certification
    Certification
    Certification
    Certification
    Key Specifications
    • Available sizes
      Available sizes: 1 inch~12 inch |DN25~DN600
    • Working pressure
      Working pressure: 300PSI/2.07MPa
    • Certificate
      Certificate: FM / UL /CE certified
    • Coating
      Coating: epoxy /galvanized
    • Color
      Color: red/orange/white etc.

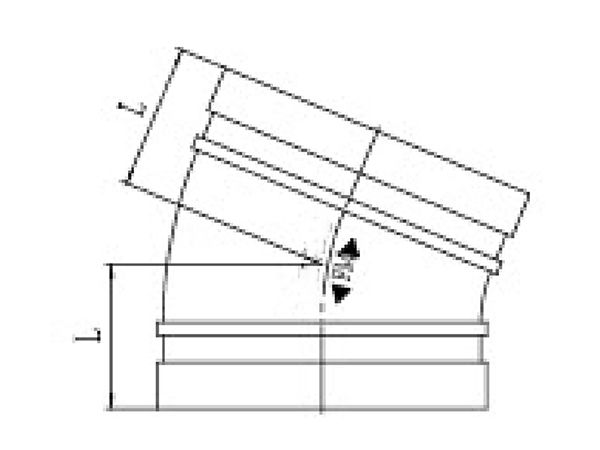

    Specifications
    Nominal SizePipe OD.Dimensions
    mm/inmm/inL mm/in
    50 / 260.3 / 2.37548 / 1.89
    65 / 2 1/273 / 2.87551 / 2.01
    65 / 2 1/276.1 / 351 / 2.01
    80 / 388.9 / 3.557 / 2.24
    100 / 4108 / 4.2573 / 2.87
    100 / 4114.3 / 4.570 / 2.76
    125 / 5133 / 5.2573 / 2.87
    125 / 5139.7 / 5.573 / 2.87
    150 / 6165.1 / 6.589 / 3.5
    150 / 6168.3 / 6.62579 / 3.11
    200 / 8219.1 / 8.62598 / 3.85
