Mechanical Tee Threaded Outlet
  • Mechanical Tee Threaded Outlet
  • Mechanical Tee Threaded Outlet
  • Mechanical Tee Threaded Outlet
    • Request a Quote

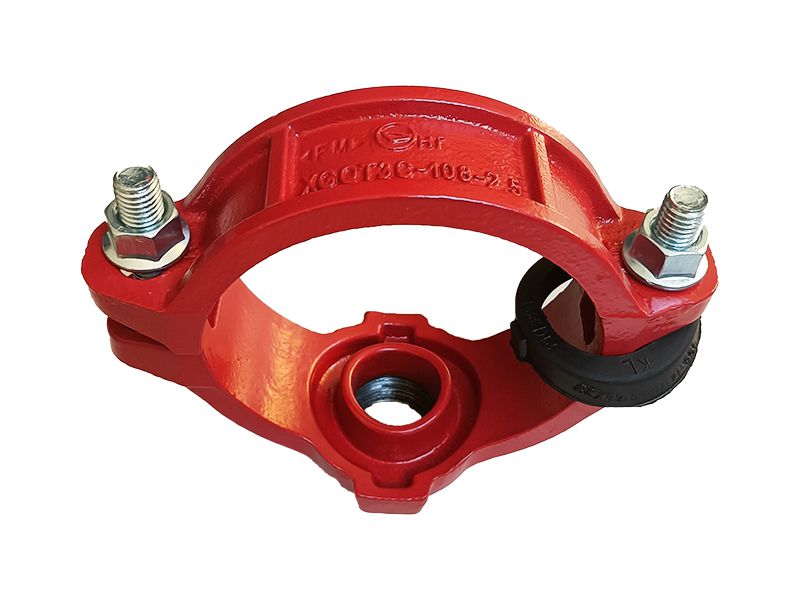

    Mechanical tees threaded outlet consist of upper and lower housings, a gasket, and bolts/nuts, providing a simple and fast method for branch connection. The self-sealing structure of the gasket ensures permanent sealing. During field operations, mechanical tees can be tightly installed on the pipeline to ensure the accuracy of the branch outlet connection.

    Features

    • Mechanical tees threaded outlet provides an additional threaded outlet in existing piping.

    • For new construction, the mechanical tee provides a way to bypass the use of a reducing tee.

    • The mechanical tee may be easily converted into a cross when necessary.

    Recommended Applications

    Mechanical tees threaded outlet is suitable for piping systems, such as fire protection piping and sprinkler piping systems.


    Certification
    Certification
    Certification
    Certification
    Key Specifications
    • Available sizes
      Available sizes: 2×1 inch~10×4 inch |DN50×25~DN250×65
    • Working pressure
      Working pressure: 300PSI/2.07MPa
    • Certificate
      Certificate: FM/UL/CE certified
    • Coating
      Coating: epoxy/galvanized
    • Material
      Material: ductile iron
    Specifications
    Nominal SizePipe ODHole DiaDimensionsBolt Size
    mm/inmm/inHole Cutting Measurementmm/inNo.-Size / mm

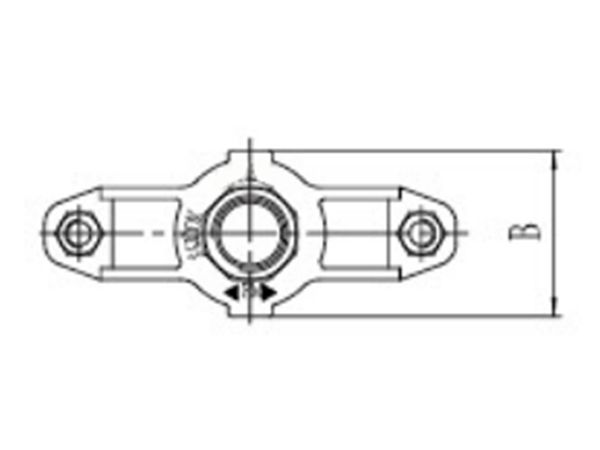

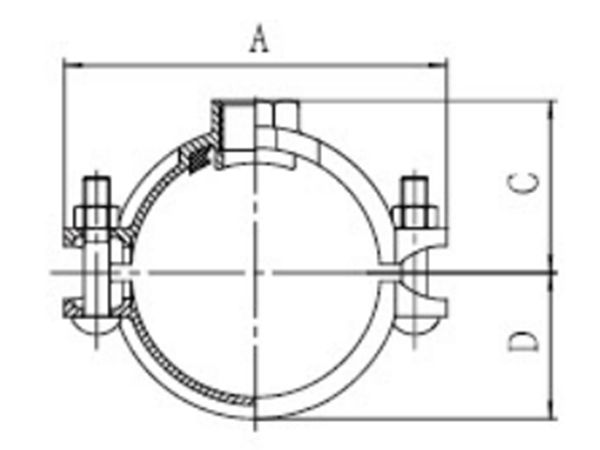

    A / mmB / mmC / mmD / mm
    50×15 / 2×1/460x21 / 2.375×0.82738 / 1.5118 / 4.6474 / 2.9155 / 2.1740 / 1.57M10×55-2
    50×20 / 2×3/460x27 / 2.375×1.06338 / 1.5118 / 4.6474 / 2.9160 / 2.3640 / 1.57M10×55-2
    50×25 / 2×160.3×33.7 / 2.375×1.31538 / 1.5118 / 4.6474 / 2.9160 / 2.3640 / 1.57M10×55-2
    50×32 / 2×1 1/460.3×42.4 / 2.375×1.66045 1.77118 / 4.6474 / 2.9160 / 2.3640 / 1.57M10×55-2
    50×40 / 2×1 1/260.3×48.3 / 2.375×1.90045 / 1.77118 / 4.6474 / 2.9160 / 2.3640 / 1.57M10×55-2
    65×15 / 2 1/2×1/473x21 / 2.875×0.82738 / 1.5132 / 5.274 / 2.9162 / 2.5247 / 1.85M12×70-2
    65×20 / 2 1/2×3/473x27 / 2.875×1.06338 / 1.5132 / 5.274 / 2.9162 / 2.5247 / 1.85M12×70-2
    65×25 / 2 1/2×173×33.7 / 2.875×1.31538 / 1.5132 / 5.274 / 2.9164 / 2.5247 / 1.85M12×70-2
    65×32 / 2 1/2×1 1/473×42.4 / 2.875×1.66051 / 2.01132 / 5.282 / 3.2364 / 2.5247 / 1.85M12×70-2
    65×40 / 2 1/2×1 1/273×48.3 / 2.875×1.90051 / 2.01132 / 5.282 / 3.2364 / 2.5247 / 1.85M12×70-2
    65×50 / 2 1/2×273x60 / 2.875×2.37551 / 2.01132 / 5.284 / 3.2375 / 2.9547 / 1.85M12×70-2
    65×15 / 2 1/2×1/476x21 / 3.000×0.82738 / 1.5135 / 5.3172 / 2.8362 / 2.5248 / 1.89M12×70-2
    65×20 / 2 1/2×3/476x27 / 3.000×1.06338 / 1.5135 / 5.3172 / 2.8364 / 2.5248 / 1.89M12×70-2
    65×25 / 2 1/2×176.1×33.7 / 3.000×1.31538 / 1.5135 / 5.3172 / 2.8364 / 2.5248 / 1.89M12×70-2
    65×32 / 2 1/2×1 1/476.1×42.4 / 3.000×1.66051 / 2.01135 / 5.3185 / 3.3566 / 2.6048 / 1.89M12×70-2
    65×40 / 2 1/2×1 1/276.1×48.3 / 3.000×1.90051 / 2.01135 / 5.3185 / 3.3566 / 2.6048 / 1.89M12×70-2
    65×50 / 2 1/2×276x60 / 3.000×2.37551 / 2.01135 / 5.3184 / 3.2376 / 2.9948 / 1.89M12×70-2
    80×15 / 3×1/288.9×21.3 / 3.500×0.82538 / 1.50146 / 5.7574 / 2.9166 / 2.6055 / 2.17M12×70-2
    80×20 / 3×3/488.9×26.7 / 3.500×1.05038 / 1.50146 / 5.7574 / 2.9166 / 2.6055 / 2.17M12×70-2
    80×25 / 3×188.9×33.7 / 3.500×1.31538 / 1.18146 / 5.7574 / 2.9170 / 2.7655 / 2.17M12×70-2
    80×32 / 3×1 1/488.9×42.4 / 3.500×1.66051 / 2.01146 / 5.7586 / 3.3973 / 2.8755 / 2.17M12×70-2
    80×40 / 3×1/288.9×48.3 / 3.500×1.90051 / 2.01146 / 5.7586 / 3.3977 / 3.0355 / 2.17M12×70-2
    80x50 / 3x288 9 x 60.3 3.500 x 2.37564 / 2.52146 / 5.7596 / 3.7880 / 3.1555 / 2.17M12x70-2
    80x65 / 3x2 1/289x76 / 3.500 x 3.00064 / 2.52146 / 5.7599 / 3.9084 / 3.3155 / 2.17M12×70-2
    100x25 / 4x1108x33.7 4.250x1.31538 / 1.5172 / 6.7772 / 28376 / 2.9964 / 2.52M12x75-2
    100x32 / 4x1 1/4108.0x42.4 / 4.250x1.66051 / 2.01172 / 6.7782 / 3.2376 / 2.9964 / 2.52M12x75-2
    100x40 / 4x1 1/2108.0x48.3 / 4.250x1.90051 / 2.01172 / 6.7782 / 3.2376 / 2.9964 / 2.52M12x75-2
    100x50 / 4x2108.0x60.3 / 4.250x2.37564 / 2.52172 / 6.7795 / 3.7478 / 3.0764 / 2.52M12x75-2
    100x15 / 4x1/4114x21 / 4.500x0.82538 / 1.5178  / 7.0174 / 2.9183 / 3.2769 / 2.72M12x75-2
    100x20 / 4x3/4114x27 / 4.500x1.06338 / 1.5178  / 7.0174 / 2.9183 / 3.2769 / 2.72M12x75-2
    100x25 / 4x1114.3x33.7 4.500x1.31538 / 1.5178 / 7.0174 / 2.9186 / 3.9969 / 2.72M12x75-2
    100x32 / 4x1 1/4114.3x42.4 / 4.500x1.66051 / 2.01178  / 7.0186  / 3.3987 / 3,4369 / 2.72M12x75-2
    100x40 / 4 x1 1/2114,3x48.3 4.500 X1.90051 / 2.01178  / 7.0186  / 3.3989 / 3.5169 / 2.72M12x75-2
    100x50 / 4x2114.3x60.3 4.500x2.37564 / 2.52178 / 7.01100 / 3.9494 / 3.769 / 2.72M12x75-2
    100x65  / 4x2 1/2114.3x76.1 4500x3.00070 / 2.76178 / 7.01106 / 4.17100 / 3.9469 / 2.72M12x75-2
    100x80 / 4x3114.3x88.9 4.500x3.50089 / 3.5178 / 7.01124 / 4.8899 / 3.969 / 2.72M12x75-2
    125x25 / 5x1133.0 x 33 7 5.250x1.31538 / 1.5200 / 7.8774 / 2.9195 / 3.7477 / 3.03M16x85-2
    125x32 / 5x1 1/4133.0 x 42.4 5.250x1.66051 / 2.01200 / 7.8786  / 3.3995 / 3.7477 / 3.03M16x85-2
    125x40 / 5x1 1/2133.0x48.3 5.250x1.90051 / 2.01200 / 7.8786  / 3.3995 / 3.7477 / 3.03M16x85-2
    125x50 / 5x2133.0 x 60.3 5.250x2.37564 / 2.52200 / 7.87100 / 3.94104 / 4.0977 / 3.03M16x85-2
    125x25 / 5x1139.7x33.7 5.503x1.31538 / 1.5213 / 8.3974 / 2.9198 / 3.8681 / 3.19M16x85-2
    125x32 / 5x1 1/4139,7x42.4 5.500x1.66051 / 2.01213 / 8.3986 / 3.3999 / 3.981 / 3.19M16x85-2
    125x40 / 5x1 1/2139.7x48.3 5.500 x1.90051 / 2.01213 / 8.3986 / 3.39111 / 4.3781 / 3.19M16x85-2
    125x50 / 5x2133.0 x 60.3 5.250x2.37564 / 2.52213 / 8.39100 / 2.19106 / 4.1781 / 3.19M16x85-2
    125x65 / 5x2 1/2139.0 x 76.1 / 5.500x3.00070 / 2.76213 / 8.39108 / 4.25110 / 4.3381 / 3.19M16x85-2
    150x25 / 6x1165.1x33.7 / 6.500x1.31538 / 1.5239 / 9.4174 / 2.91112 / 4.4195 / 3.74M16x 105-2
    150x32 / 6x1 1/4165.1x42.4 / 6.500x1.66051 / 2.01239 / 9.4186 / 3.39113 / 4.4595 / 3.74M16x 105-2
    150x40 / 6x1 1/2165.1x48.3 / 6.500x1.90051 / 2.01239 / 9.4186 / 3.39115 / 4.5395 / 3.74M16x 105-2
    150x50 / 6x2165.1x60.3 / 6.500x2.37564 / 2.52239 / 9.41100 / 3.94120 / 4.7295 / 3.74M16x 105-2
    150x65 / 6x2 1/2165.1x76.1 / 6.500x3.00070 / 2.76239 / 9.41108 / 4.25124 / 4.6895 / 3.74M16x105-2
    150x80 / 6x3165.1x88.9 / 6.500x3.50089 / 3.5239 / 9.41126 / 4.96123 / 4.8495 / 3.74M16x 105-2
    150x25 / 6x1168.3 x 33.7 / 6.625x1.31538 / 1.5255 / 10.0474 / 2.91115 / 4.5396 / 3.78M16x105 2
    150x32 / 6x1 1/4168.3x42.4 / 6.625x1.66051 / 2.01255 / 10.0488 / 3.64115 / 4.5396 / 3.78M16x 105-2
    150x40 / 6x1 1/2168.3 x 48.3 6.625x1.90051 / 2.01255 / 10.0488 / 3.64115 / 4.5396 / 3.78M16x 105-2
    150x50 / 6x2168.3x60.3 6.625x2.37564 / 2.52255 / 10.04102 / 4.02120 / 4.7296 / 3.78M16x 105-2
    150x65 / 6x2 1/2168.3 x 73 6.625x3.00070 / 2.76255 / 10.04108 / 4.25122 / 4.8096 / 3.78M16x 105-2
    150x80 / 6x3168.3 x 88.9 / 6.625x3.50089 / 3.5255 / 10.04124 / 4.88122 / 4.8096 / 3.78M16x 105-2
    200x25 / 8x1219.1 x 33.7 / 8.625x3.31538 / 1.5310 / 12.2173 / 2.87135.5 / 5.35115 / 4.53M20x 115-2
    200x32 / 8x1 1/4219.1 x42.4 / 8.625x1.66051 / 2.01310 / 12.2182 / 3.23135.5 / 5.35115 / 4.53M20x 115-2
    200x40 / 8x1 1/2219.1 x48.3 / 8.625x1.90051 / 2.01310 / 12.2186 / 3.39135.5 / 5.35115 / 4.53M20x 115-2
    200x50 / 8x2219.1 x 33.7 / 8.625x2.37538 / 1.5310 / 12.2197 / 3.82138 / 5.43115 / 4.53M20x 115-2
    200x65 / 8x2 1/2219.1 x76.1 / 8.625x3.00070 / 2.76310 / 12.21115 / 4.53138 / 5.43115 / 4.53M20x 115-2
