Grooved Concentric Reducer
  • Grooved Concentric Reducer
  • Grooved Concentric Reducer
    • Request a Quote

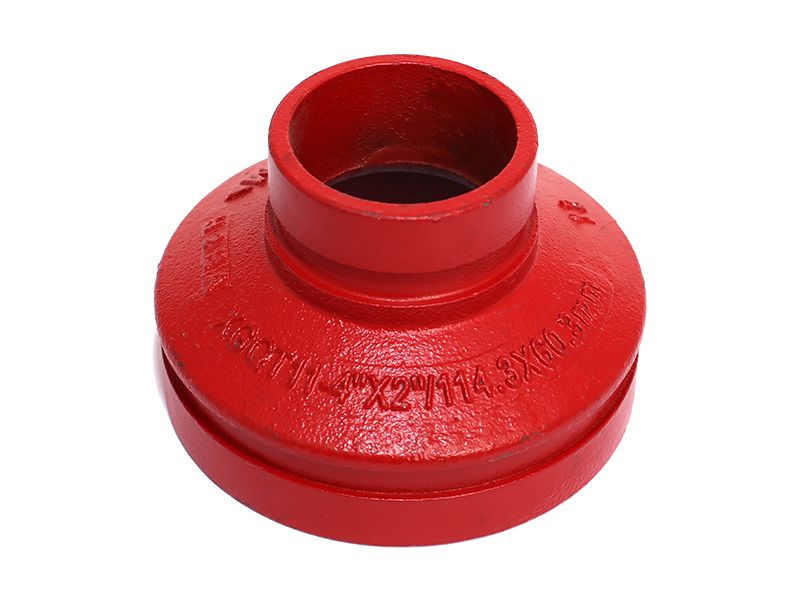

    Grooved concentric reducers are cone-shaped pipe fittings with grooved connections that reduce the size of a pipeline in a symmetrical and concentric manner, while keeping the centerlines of the two pipes aligned.

    Features

    • Made of materials such as ductile iron, stainless steel, or carbon steel, providing high wear resistance and corrosion resistance.

    • Available in various sizes and pressure ratings to accommodate different applications.

    • Enables to join the two pipes of different diameters.

    Recommended Applications

    Grooved concentric reducer is commonly used in industrial and commercial piping systems, such as gas pipelines, water supply pipelines, etc., where a reduction of the pipe size is required to accommodate changes in flow or pressure.


    Certification
    Certification
    Certification
    Certification
    Key Specifications
    • Available sizes
      Available sizes: 1 1/4×1 inch~12×10 inch |DN32×25~DN300×250
    • Working pressure
      Working pressure: 300PSI/2.07MPa
    • Certificate
      Certificate: FM/UL/CE certified
    • Coating
      Coating: epoxy/galvanized
    • Color
      Color: red/orange/white, etc.
    • Material
      Material: ductile iron, stainless steel or carbon steel
    Specifications

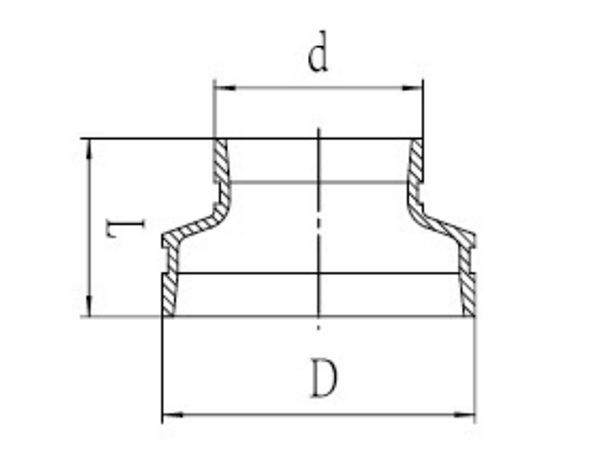

    Nominal SizePipe ODDimensions
    mm/inmm/inL mm/in
    32x25 / 1 1/4x142.4x33.7 / 1.660x1.31564 / 2.51
    40x25 / 11/2x148.3x33.7 / 1.900x1.31564 / 2.51
    40x32 / 1 1/2×1 1/448.3x42.4 / 1.900x1.66064 / 2.51
    50x25 / 2x160.3 x 33.7 / 2.375x1.31564 / 2.51
    50x32 / 2x1 1/460.3x42.4 / 2.375x1.66064 / 2.51
    50x40 / 2x1 1/2603x48.3 / 2.375x1.90064 / 2.51
    65x25 / 2 1/2x173.0 x 33.7 / 2.875x1.31564 / 2.51
    65x32 / 2 1/2x1 1/473.0x42.4 / 2.875x1.66064 / 2.51
    65x40 / 2 1/2x1 1/273.0x48.3 / 2.875x1.90064 / 2.51
    65x50 / 2 1/2x273.0 x 60.3 / 2.875x2.37564 / 2.51
    65x32 / 2 1/2x1 1/476.1 x 42.4 / 3.000x1.66064 / 2.51
    65x40 / 2 1/2x1 1/276.1x48.3 / 3.000x1.90064 / 2.51
    65x50 / 2 1/2x276.1x60.3 / 3.000 x 2.37564 / 2.51
    80x32 / 3x1 1/488.9x42.4 / 3.500x1.66055 / 2.17
    80x40 / 3x1 1/288.9 x 48.3 / 3.500x1.90055 / 2.17
    80x50 / 3x288.9 x 60.3 / 3.500x2.37555 / 2.17
    80x65 / 3x2 1/288.9x76.1 / 3.500 x 3.00055 / 2.17
    100x65 / 4x2 1/2108.0 x 76.1 / 4.250 x 3.00076 / 2.99
    100x80 / 4x3108.0x88.9 / 4.250 x 3.50076 / 2.99
    100x32 / 4x1 1/4114.3x42.4 / 4.500x1.66060 / 2.36
    100x40 / 4x1 1/2114.3x48.3 / 4.500x1.90060 / 2.36
    100x50 / 4x2114.3x60.3 / 4.500x2.37560 / 2.36
    100x65 / 4x2 1/2114.3x76.1 / 4.500 x 3.00060 / 2.36
    100x80 / 4x3114.3x88.9 / 4.500 x 3.50060 / 2.36
    125x50 / 5x2139.7x60.3 / 5.500x2.37565 / 2.56
    125x65 / 5x2 1/2139.7x76.1 / 5.500 x 3.00065 / 2.56
    125x80 / 5x3139.7x88.9 / 5.500 x 3.50065 / 2.56
    125x100 / 5x4139.7x114.3 / 5.500 x 4.50065 / 2.56
    150x50 / 6x2159.0x60.3 / 6.250x2.37570 / 2.76
    150x65 / 6x2 1/2159.0x76.1 / 6.250 x 3.00070 / 2.76
    150x80 / 6x3159.0x88.9 / 6.250 x 3.50070 / 2.76
    150x100 / 6x4159.0x108.0 / 6.250 x 4.25070 / 2.76
    150x100 / 6x4159.0x114.3 / 6.250x4.50070 / 2.76
    150x125 / 6x5159.0x133.0 / 6.250x5.25070 / 2.76
    150x125 / 6x5159 0x139 7 / 6.250 x 5.50070 / 2.76
    150x50 / 6x2165.1 x60.3 / 6.500 x 2.375102 / 4.01
    150x65 / 6x2 1/2165.1x76.1 / 6.500 x 3.000102 / 4.01
    150x80 / 6x3165.1x88.9 / 6.500 x 3.500102 / 4.01
    150x100 / 6x4165.1x114.3 / 6.500x4.500102 / 4.01
    150x125 / 6x5165.1x139.7 / 6.500x5.500102 / 4.01
    150x50 / 6x2168.3 x 60.3 / 6.625x2.37570 / 2.76
    150x65 / 6x2 1/2168.3x76.1 / 6.625 x 3.00070 / 2.76
    150x80 / 6x3168.3 x 88.9 / 6.625x3.50070 / 2.76
    150x100 / 6x4168.3x114.3 / 6.625x4.50070 / 2.76
    150x125 / 6x5168.3x139.7 / 6.625 x 5.50070 / 2.76
    200 x 50 / 8x2219.1x60.3 / 8.625x2.37585 / 3.35
    200x65 / 8x2 1/2219.1x76.1 / 8 625x3.00085 / 3.35
    200 x 80 / 8x3219.1x88.9 / 8.625x3.50085 / 3.35
    200x100 / 8x4219.1 x 108.0 / 8.625x4.25085 / 3.35
    200x100 / 8x4219.1 x 114.3 / 8.625x4.50085 / 3.35
    200x125 / 8x5219.1 x 139.7 / 8.625 x 5.50085 / 3.35
    200x150 / 8x6219.1 x 159.0 / 8.625x6.25085 / 3.35
    200x150 / 8x6219.1 x 165.1 / 8.625x6.50085 / 3.35
    200x150 / 8x6219.1 x 168.3 / 8.625x6.62585 / 3.35
    Where are grooved fittings used?
    Grooved fittings are mainly used in fire sprinkler piping systems, drinking water supply pipelines, oil extraction pipelines, and other applications, making them a versatile pip fitting.
    What are the advantages of using a grooved piping system?
    Using a grooved piping system can save installation costs, reduce pollution, and allow for quick installation, as well as minimizes vibration and noise for connected pipes.
