Threaded Concentric Reducer
  • Threaded Concentric Reducer
  • Threaded Concentric Reducer
    • Request a Quote

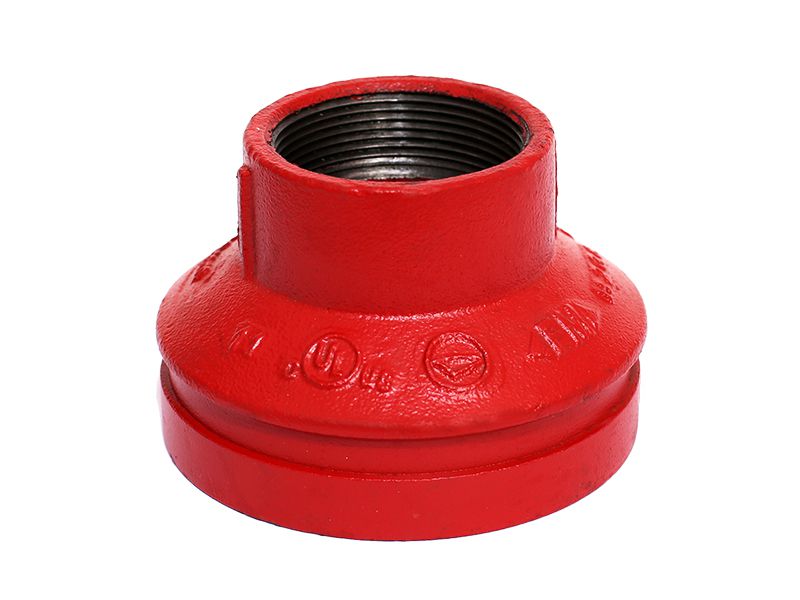

    Threaded concentric reducers are cone-shaped pipe fittings that have grooves and internal threads for connection. They reduce the size of the pipeline in a symmetrical and concentric manner while keeping the centerlines of the two pipes aligned. This product achieves mechanical coupling by using a set of grooves at the ends of the pipes and fittings. Typically, one end is grooved using a specialized tool, and then the joint is clamped onto the groove using bolts or a similar mechanism. The other end is threaded.

    Features

    • Made of materials such as ductile iron, stainless steel, or carbon steel, which provide strong wear resistance and corrosion resistance.

    • Available in various sizes and pressure ratings, suitable for different applications.

    • Enables the connection of two pipes with different diameters.

    Recommended Applications

    Threaded concentric reducers are commonly used in industrial and commercial piping systems, such as gas pipelines, water supply pipelines, etc., where the size of the pipeline needs to be reduced to accommodate changes in flow or pressure.

    Certification
    Certification
    Certification
    Certification
    Key Specifications
    • Available sizes
      Available sizes: 1 1/4×1 inch~12×4 inch |DN32×25~DN300×100
    • Working pressure
      Working pressure: 300PSI/2.07MPa
    • Certificate
      Certificate: FM/UL/CE certified
    • Coating
      Coating: epoxy/galvanized
    • Color
      Color: red/orange/white, etc.
    • Material
      Material: ductile iron
    Specifications

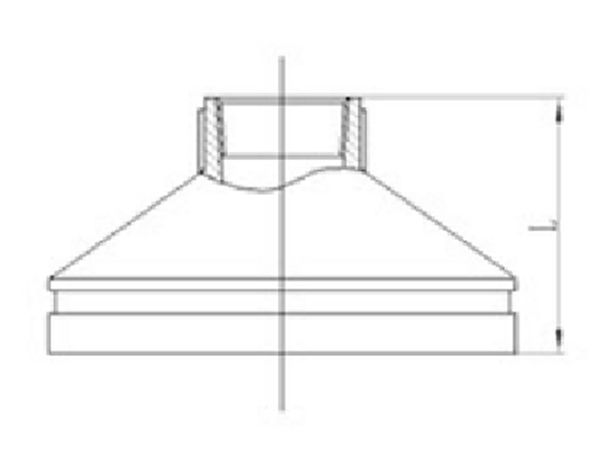

    Nominal SizePipe ODDimensions
    mm/inmm/inL mm/in
    32×25 / 1 1/4×142.4×33.7 / 1.660×1.31564 / 2.51
    40×32 / 1 1/2×1 1/448.3×42.4 / 1.900×1.66064 / 2.51
    50×25 / 2×160.3×33.7 / 2.375×1.31564 / 2.51
    50×32 / 2×1 1/460.3×42.4 / 2.375×1.66064 / 2.51
    50×40 / 2×1 1/260.3×48.3 / 2.375×1.90064 / 2.51
    65×25 / 2 1/2×173×33.7 / 2.875×1.31564 / 2.51
    65×32 / 2 1/2×1 1/473×42.4 / 2.875×1.66064 / 2.51
    65×40 / 2 1/2×1 1/273×48.3 / 2.875×1.90064 / 2.51
    65×50 / 2 1/2×273×60.3 / 2.875×2.37564 / 2.51
    65×25 / 2 1/2×176×33.7 / 3.000×1.31564 / 2.51
    65×32 / 2 1/2×1 1/476×42.4 / 3.000×1.66064 / 2.51
    65×40 / 2 1/2×1 1/276×48.3 / 3.000×1.90064 / 2.51
    65×50 / 2 1/2×276×60.3 / 3.000×2.37564 / 2.51
    80×25 / 3×188.9×33.7 / 3.500×1.31564 / 2.51
    80×32 / 3×1 1/488.9×42.4 / 3.500×1.66064 / 2.51
    80×40 / 3×1 1/288.9×48.3 / 3.500×1.90064 / 2.51
    80×50 / 3×288.9×60.3 / 3.500×2.37564 / 2.51
    80×65 / 3×2 1/288.9×76.1 / 3.500×3.00064 / 2.51
    100×25 / 4×1108.0×33.7 / 4.250×1.31576 / 2.99
    100×32 / 4×1 1/4108.0×42.4 / 4.250×1.66076 / 2.99
    100×40 / 4×1 1/2108.0×48.3 / 4.250×1.90076 / 2.99
    100×50 / 4×2108.0×60.3 / 4.250×2.37576 / 2.99
    100×65 / 4×2 1/2108.0×76.1 / 4.250×3.00076 / 2.99
    100×80 / 4×3108.0×88.9 / 4.250×3.50076 / 2.99
    100×25 / 4×1114.3×33.7 / 4.500×1.31576 / 2.99
    100×32 / 4×1 1/4114.3×42.4 / 4.500×1.66076 / 2.99
    100×40 / 4×1 1/2114.3×48.3 / 4.500×1.90076 / 2.99
    100×50 / 4×2114.3×60.3 / 4.500×2.37576 / 2.99
    100×65 / 4×2 1/2114.3×76.1 / 4.500×3.00076 / 2.99
    100×80 / 4×3114.3×88.9 / 4.500×3.50076 / 2.99
    125×25 / 5×1133.0×33.7 / 5.250×1.31589 / 3.5
    125×32 / 5×1 1/4133.0×42.4 / 5.250×1.66089 / 3.5
    125×40 / 5×1 1/2133.0×48.3 / 5.250×1.90089 / 3.5
    125×50 / 5×2133.0×60.3 / 5.250×2.37589 / 3.5
    125×25 / 5×1139.7×33.7 / 5.500×1.31589 / 3.5
    125×32 / 5×1 1/4139.7×42.4 / 5.500×1.66089 / 3.5
    125×40 / 5×1 1/2139.7×48.3 / 5.500×1.90089 / 3.5
    125×50 / 5×2139.7×60.3 / 5.500×2.37589 / 3.5
    125×65 / 5×2 1/2139.7×76.1 / 5.500×3.00089 / 3.5
    125×80 / 5×3139.7×88.9 / 5.500×3.50089 / 3.5
    125×100 / 5×4139.7×114.3 / 5.500×4.50089 / 3.5
    125×25 / 5×1141.3×33.7 / 5.563×1.31589 / 3.5
    125×32 / 5×1 1/4141.3×42.4 / 5.563×1.66089 / 3.5
    125×40 / 5×1 1/2141.3×48.3 / 5.563×1.90089 / 3.5
    125×50 / 5×2141.3×60.3 / 5.563×2.37589 / 3.5
    125×65 / 5×2 1/2141.3×76.1 / 5.563×3.00089 / 3.5
    125×80 / 5×3141.3×88.9 / 5.563×3.50089 / 3.5
    150×25 / 6×1159.0×33.7 / 6.250×1.315102 / 4.01
    150×32 / 6×1 1/4159.0×42.4 / 6.250×1.660102 / 4.01
    150×40 / 6×1 1/2159.0×48.3 / 6.250×1.900102 / 4.01
    150×50 / 6×2159.0×60.3 / 6.250×2.375102 / 4.01
    150×65 / 6×2 1/2159.0×76.1 / 6.250×3.000102 / 4.01
    150×80 / 6×3159.0×88.9 / 6.250×3.500102 / 4.01
    150×25 / 6×1165.1×33.7 / 6.500×1.315102 / 4.01
    150×32 / 6×1 1/4165.1×42.4 / 6.500×1.660102 / 4.01
    150×40 / 6×1 1/2165.1×48.3 / 6.500×1.900102 / 4.01
    150×50 / 6×2165.1×60.3 / 6.500×2.375102 / 4.01
    150×65 / 6×2 1/2165.1×76.1 / 6.500×3.000102 / 4.01
    150×80 / 6×3165.1×88.9 / 6.500×3.500102 / 4.01
    150×100 / 6×4165.1×114.3 / 6.500×4.500102 / 4.01
    150×25 / 6×1168.3×33.7 / 6.625×1.315102 / 4.01
    150×32 / 6×1 1/4168.3×42.4 / 6.625×1.660102 / 4.01
    150×40 / 6×1 1/2168.3×48.3 / 6.625×1.900102 / 4.01
    150×50 / 6×2168.3×60.3 / 6.625×2.375102 / 4.01
    200×25 / 8×1219.1×33.7 / 8.625×1.315127 / 5
    200×32 / 8×1 1/4219.1×42.4 / 8.625×1.660127 / 5
    200×40 / 8×1 1/2219.1×48.3 / 8.625×1.900127 / 5
    200×50 / 8×2219.1×60.3 / 8.625×2.375127 / 5
    200×65 / 8×2 1/2219.1×76.1 / 8.625×3.000127 / 5
    200×80 / 8×3219.1×88.9 / 8.625×3.500127 / 5
    200×100 / 8×4219.1×114.3 / 8.625×4.500127 / 5
    Can grooved fittings be used as alternatives to flange connections or welding in a pipe system?
    Grooved mechanical pipe fitting offers a versatile pipe-joining alternative, suitable for various applications such as fire sprinkler piping systems, outdoor piping systems, and pipelines in geologically unstable conditions. This flame-free joining method improves installation efficiency and reduces maintenance costs.
    What are the advantages of grooved mechanical pipe systems?
    Grooved fittings provide the piping systems with a certain level of rigidity, low noise, small vibrations, and lower maintenance costs.
