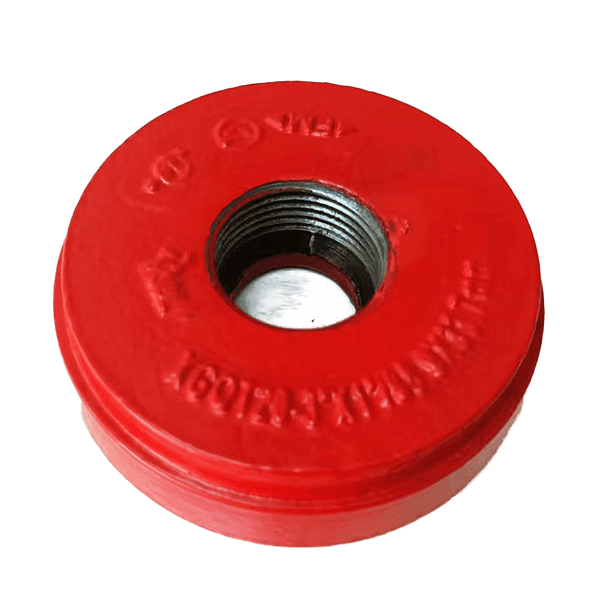

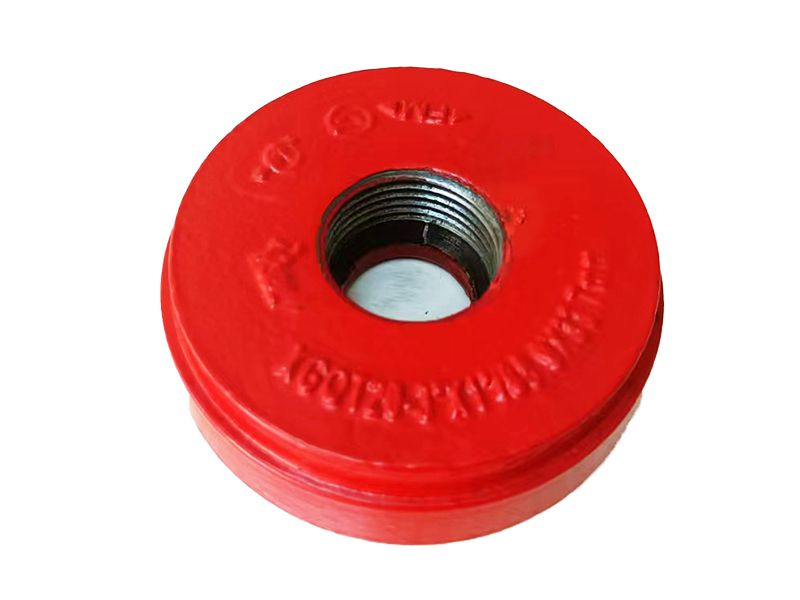

Grooved End Cap with Concentric Hole
  • Grooved End Cap with Concentric Hole
    • Request a Quote

    Grooved end cap with concentric hole is used to be fitted onto the end of a pipe with a threaded concentric hole for drainage. This grooved end cap provides an economic and efficient method of reducing grooved piping systems.

    Recommended Applications

    HT Model XGQT06/20/21 is an ideal transition fitting for cases where a large reduction is required, such as 6x1" or 4"x1". It can be used as a cost-effective alternative to expensive swaged nipples.

    Certification
    Certification
    Certification
    Certification
    Key Specifications
    • Available sizes
      Available sizes: 1 inch~12 inch |DN25~DN300
    • Working pressure
      Working pressure: 300PSI/2.07MPa
    • Certificate
      Certificate: FM / UL /CE certified
    • Coating
      Coating: epoxy / galvanized
    • Color
      Color: red/orange/white etc.
    Specifications
    Nominal SizePipe ODDimensions
    mm/inmm/inL mm/in
    50 ×25 / 2×160.3 ×33.7 / 2.375×1.31525 / 0.98
    65 ×25 / 2 1/2×173 ×33.7 / 2.875×1.31525 / 0.98
    65 ×25 / 2 1/2×176.1 ×33.7 / 3×1.31525 / 0.98
    80 ×25 / 3×188.9 ×33.7 / 3.5×1.31525 / 0.98
    100 ×25 / 4×1108 ×33.7 / 4.25×1.31525 / 0.98
    100 ×25 / 4×1114.3×33.7 / 4.5×1.31526 / 1.02
    125 ×25 / 5×1133 ×33.7 / 5.25×1.31525 / 0.98
    125 ×25 / 5×1139.7 ×33.7 / 5.5×1.31526 / 1.02
    125 ×25 / 5×1141.3 ×33.7 / 5.563×1.31526 / 1.02
    150 ×25 / 6×1159 ×33.7 / 6.25×1.31526 / 1.02
    150 ×25 / 6×1165.1 ×33.7 / 6.5×1.31526 / 1.02
    150 ×25 / 6×1168.3 ×33.7 / 6.625×1.31526 / 1.02
    200 ×25 / 8×1219.1 ×33.7 / 8.625×1.31530 / 1.18
    250 ×25 / 10×1273 ×33.7 / 10.75×1.31532 / 1.26
