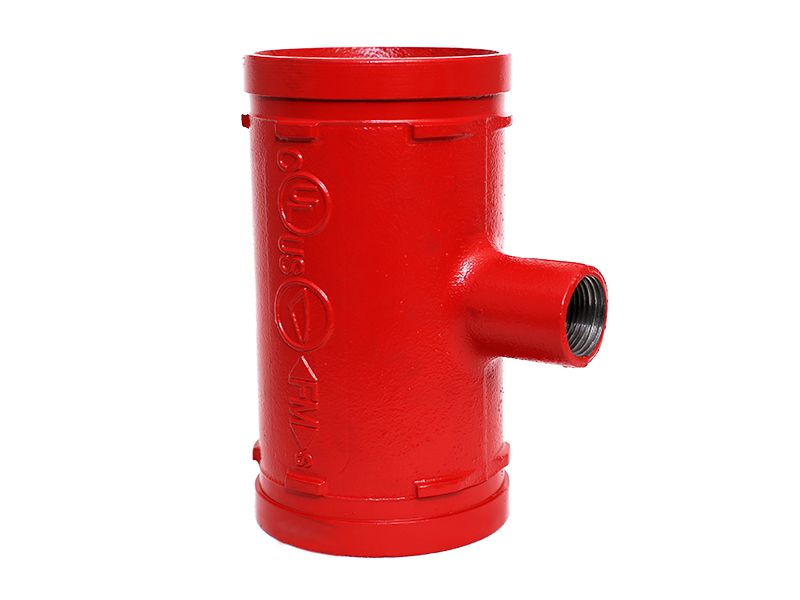

Threaded Reducing Tee
  • Threaded Reducing Tee
  • Threaded Reducing Tee
    • Request a Quote

    Threaded reducing tee is a type of tee fitting where the size of branch pipe is smaller than the main pipe, and the branch connection is threaded. They are typically made from materials such as stainless steel, brass, or PVC, depending on the application and type of fluid being transported. Selecting the correct size and material for threaded reducing tees is crucial to ensure the integrity and lifespan of pipeline systems.

    Recommended Applications

    • Threaded reducing tee is suitable for pipeline systems in industries such as petroleum, chemical, and natural gas, including wastewater treatment equipment and natural gas transport systems.

    • Connects pipe, provides changes in direction, and adapts to sizes or components.

    Certification
    Certification
    Certification
    Certification
    Key Specifications
    • Available sizes
      Available sizes: 2×1 inch~10×4 inch |DN50×25~DN250×65
    • Working pressure
      Working pressure: 300PSI/2.07MPa
    • Certificate
      Certificate: FM/UL/CE certified
    • Coating
      Coating: epoxy /galvanized
    • Color
      Color: red/orange/white, etc.
    Specifications

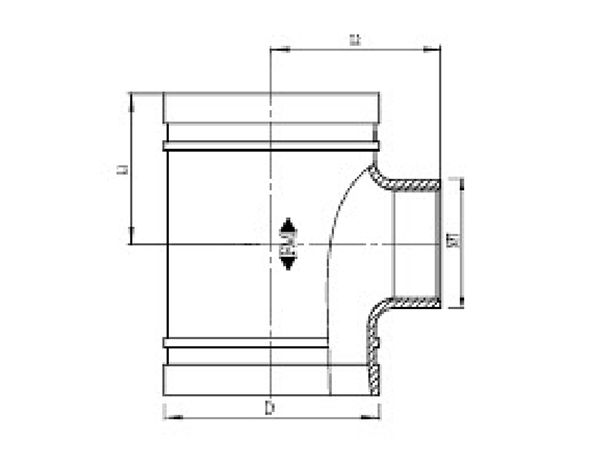

    Nominal SizePipe OD.Dimensions
     mm/inL1 mm/inL2mm/in
    50x25 / 2x160.3x33.7 / 2.375x1.31570 / 2.7670 / 2.76
    50x32 / 2x11/460.3 x 42.4 / 2.375x1.66070 / 2.7670 / 2.76
    50x40 / 2x11/260.3x48.3 / 2.375x1.90070 / 2.7670 / 2.76
    65x25 / 2 1/2x173.0 x 33.7 / 2.875x1.31576 / 2.9976 / 2.99
    65x32 / 2 1/2x1 1/473.0x42.4 / 2.875x1.66076 / 2.9976 / 2.99
    65x40 / 2 1/2x1 1/273.0x48.3 / 2.875x1.90076 / 2.9976 / 2.99
    65x50 / 2 1/2x273.0 x 60.3 / 2.875 x 2.37576 / 2.9976 / 2.99
    65x25 / 2 1/2x176.1x33.7 / 3.000x1.31595 / 3.7495 / 3.74
    65x32 / 2 1/2x1 1/476.1x42.4 / 3.000x1.66095 / 3.7495 / 3.74
    65x40 / 2 1/2x1 1/276.1x48.3 / 3.000x1.90095 / 3.7495 / 3.74
    65x50 / 2 1/2x276.1x60.3 / 3.000 x 2.37595 / 3.7495 / 3.74
    80x25 / 3x188.9 x 33.7 / 3.500x1.315108 / 4.25108 / 4.25
    80x32 / 3x11/488.9x42.4 / 3.500x1.660108 / 4.25108 / 4.25
    80x40 / 3x1 1/288.9 x 48.3 / 3.500x1.900108 / 4.25108 / 4.25
    80x50 / 3x288.9 x 60.3 / 3.500 x 2.375108 / 4.25108 / 4.25
    80x65 / 3x2 1/288.9 x 76.1 / 3.500 x 3.000108 / 4.25108 / 4.25
    100x65 / 4x2 1/2108.0 x 76.1 / 4.250x3.000127 / 5127 / 5
    100x80 / 4x3108.0 x 88.9 / 4.250x3.500127 / 5127 / 5
    100x25 / 4x1114.3x33.7 / 4.500 x 1.315127 / 5127 / 5
    100x32 / 4x1 1/4114.3x42.4 / 4.500x1.660127 / 5127 / 5
    100x40 / 4x1 1/2114.3x48.3 / 4.500x1.900127 / 5127 / 5
    100x50 / 4x2114.3x60.3 / 4.500x2.375127 / 5127 / 5
    100x65 / 4x2 1/2114.3x76.1 / 4.500 x 3.000127 / 5127 / 5
    100x80 / 4x3114.3x88.9 / 4.500 x 3.500127 / 5127 / 5
    125x25 / 5x1139.7 x 33.7 / 5.500x1.315110 / 4.33110 / 4.33
    125x32 / 5x1 1/4139.7x42.4 / 5.500x1.660110 / 4.33110 / 4.33
    125x40 / 5x 1 1/2139.7x48.3 / 5.500 x1.900110 / 4.33110 / 4.33
    125x50 / 5x2139.7x60.3 / 5.500 x 2.375110 / 4.33110 / 4.33
    125x65 / 5 x 2 1/2139.7x76.1 / 5.500 x 3.000110 / 4.33110 / 4.33
    125x80 / 5x3139.7x88.9 / 5.500 x 3.500110 / 4.33110 / 4.33
    150x25 / 6x1165.1x33.7 / 6.500x1.315165 / 6.5165 / 6.5
    150x32 / 6x1 1/4165.1x42.4 / 6.500x1.660165 / 6.5165 / 6.5
    150x40 / 6x1 1/2165.1x48.3 / 6.500x1.900165 / 6.5165 / 6.5
    150x50 / 6x2165.1x60.3 / 6.500x2.375165 / 6.5165 / 6.5
    150x65 / 6x2 1/2165.1x76.1 / 6.500x3.000165 / 6.5165 / 6.5
    150x80 / 6x3165.1x889 / 6.500x3.500165 / 6.5165 / 6.5
    150x 100 / 6x4165.1x114.3 / 6.500x4.500165 / 6.5165 / 6.5
    150x25 / 6x1168.3 x 33.7 / 6.625x1.315140 / 5.51140 / 5.51
    150x32 / 6x1 1/4168.3x42.4 / 6.625x1.660140 / 5.51140 / 5.51
    150x40 / 6x11/2168.3 x 48.3 / 6.625 x1.900140 / 5.51140 / 5.51
    150x50 / 6x2168.3 x 60.3 / 6.625x2.375140 / 5.51140 / 5.51
